Test Evaluation Mazava Battery Equalizer PLC-10
Test Evaluation Mazava Battery Equalizer PLC-10

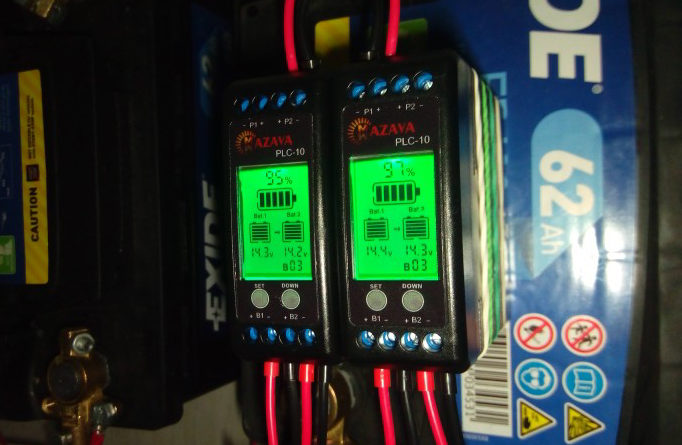

Arrived today so wanted to share with you initial unboxing on this Battery Equalizer PLC-10 from Mazava
I have 4x12V in a 2P 2S setup for 24v. I have matched batteries but purchased at a different time (within a couple of months) and noticed a few anomalies with voltages so purchased this. I have however been running the Victron Balancer in the last couple of weeks as this was taking a while to arrive.
No issues with the Victron, but this is half the price and having the visible display means I need to pull out the multimeter less and can see where things are at at a glance. Also the Victron seems to only balance when there is around 150-200mV difference. The Victron also required the mid-points to be connected, something I still don’t really understand but it did work!
Packaging is minimal to say the least, manual and unit, nothing else. Although not shown in the manual, this is designed to me mounted directly to a rail, it simply clips in. Wish they showed this in the manual, I need to buy a rail for this, but tested on one I have for my battery breaker and it works perfectly, just clips on.
